SHARE MEMBUAT PROGRAM PARKIR SEDERHANA [NETBEAN]

RayMantic · 14 Sep 2018

[HIDE]Proses parkir yang semakin canggih dengan bantuan sistem komputer, memudahkan pemilik untuk memanajemen parkir dengan baik. Selain manajemen parkir yang baik, keamanan dalam parkir terjamin karena kendaraan yang masuk maupun keluar telah tercatat dalam database sistem parkir. Kemudahan ini yang menyebabkan semakin banyak pusat perbelanjaan atau yang lainnya menggunakan sistem komputerisasi untuk memanajemen parkir. Petugas parkir hanya melakukan input no kendaraaan dan jam masuk maka pengunjung akan mendapatkan resi parkir yang nantinya diberikan pada petugas ketika ingin keluar dari area parkir.

STEP BY STEP

1. Buka Java NetBeans
Bukalah Java NetBeans dan selanjutnya buat project baru dengan memilih File > New Project.

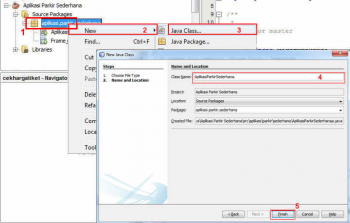

2.Buat class dengan cara klik kanan pada package > New > Java class dan buat class dengan nama AplikasiParkirSederhana.

3.Bila class telah dibuat, selanjutnya membuat script pada AplikasiParkirSederhana.

Code:

/*
 * To change this template, choose Tools | Templates
 * and open the template in the editor.
 */
package aplikasi.parkir.sederhana;

/**
 *
 * @author Ozynx.nsp
 */
public class AplikasiParkirSederhana {

    /**
     * @param args the command line arguments
     */
    public static void main(String[] args) {
        // TODO code application logic here
        Frame_Aplikasi_Parkir Laund = new Frame_Aplikasi_Parkir();
        Laund.setVisible(true);
    }
}

4.Desain frame untuk tampilan program dengan cara klik kanan pada package > New > JFrame Form dengan nama Frame_Aplikasi_Parkir.

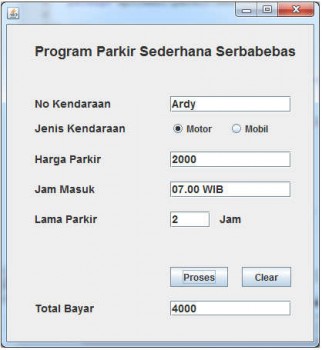

5.Lakukan pembuatan desain frame program parkir sedehana seperti berikut ini.

6.Bila desain telah selesai di buat, selanjutnya membuat script java seperti berikut ini.

Code:

/*
 * To change this template, choose Tools | Templates
 * and open the template in the editor.
 */
package aplikasi.parkir.sederhana;

/**
 *
 * @author Ozynx.nsp
 */
public class Frame_Aplikasi_Parkir extends javax.swing.JFrame {

    /**
     * Creates new form Frame_Aplikasi_Parkir
     */
    public Frame_Aplikasi_Parkir() {
        initComponents();
    }

    /**
     * This method is called from within the constructor to initialize the form.
     * WARNING: Do NOT modify this code. The content of this method is always
     * regenerated by the Form Editor.
     */
    @SuppressWarnings("unchecked")
    // <editor-fold defaultstate="collapsed" desc="Generated Code">
    private void initComponents() {

        jLabel1 = new javax.swing.JLabel();
        jLabel2 = new javax.swing.JLabel();
        jLabel3 = new javax.swing.JLabel();
        jLabel4 = new javax.swing.JLabel();
        jLabel5 = new javax.swing.JLabel();
        jLabel7 = new javax.swing.JLabel();
        NoKendaraan = new javax.swing.JTextField();
        hargaParkir = new javax.swing.JTextField();
        lamaParkir = new javax.swing.JTextField();
        jamMasuk = new javax.swing.JTextField();
        motor = new javax.swing.JRadioButton();
        Mobil = new javax.swing.JRadioButton();
        jLabel8 = new javax.swing.JLabel();
        totalBayar = new javax.swing.JTextField();
        jButton1 = new javax.swing.JButton();
        jButton2 = new javax.swing.JButton();
        jLabel9 = new javax.swing.JLabel();

        setDefaultCloseOperation(javax.swing.WindowConstants.EXIT_ON_CLOSE);
        setName("");

        jLabel1.setFont(new java.awt.Font("Arial", 1, 18)); // NOI18N
        jLabel1.setText("Program Parkir Sederhana Serbabebas");

        jLabel2.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel2.setText("No Kendaraan");

        jLabel3.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel3.setText("Jam Masuk");

        jLabel4.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel4.setText("Jenis Kendaraan");

        jLabel5.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel5.setText("Harga Parkir");

        jLabel7.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel7.setText("Lama Parkir");

        NoKendaraan.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        NoKendaraan.setName("");
        NoKendaraan.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                NoKendaraanActionPerformed(evt);
            }
        });

        hargaParkir.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N

        lamaParkir.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N

        jamMasuk.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jamMasuk.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jamMasukActionPerformed(evt);
            }
        });

        motor.setText("Motor");
        motor.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                motorActionPerformed(evt);
            }
        });

        Mobil.setText("Mobil");
        Mobil.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                MobilActionPerformed(evt);
            }
        });

        jLabel8.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel8.setText("Total Bayar");

        totalBayar.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        totalBayar.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                totalBayarActionPerformed(evt);
            }
        });

        jButton1.setText("Proses");
        jButton1.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jButton1ActionPerformed(evt);
            }
        });

        jButton2.setText("Clear");
        jButton2.addActionListener(new java.awt.event.ActionListener() {
            public void actionPerformed(java.awt.event.ActionEvent evt) {
                jButton2ActionPerformed(evt);
            }
        });

        jLabel9.setFont(new java.awt.Font("Arial", 1, 14)); // NOI18N
        jLabel9.setText("Jam");

        javax.swing.GroupLayout layout = new javax.swing.GroupLayout(getContentPane());
        getContentPane().setLayout(layout);
        layout.setHorizontalGroup(
            layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
            .addGroup(layout.createSequentialGroup()
                .addGap(36, 36, 36)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
                    .addComponent(jLabel1)
                    .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING, false)
                        .addGroup(layout.createSequentialGroup()
                            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
                                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING, false)
                                    .addComponent(jLabel3, javax.swing.GroupLayout.DEFAULT_SIZE, javax.swing.GroupLayout.DEFAULT_SIZE, Short.MAX_VALUE)
                                    .addComponent(jLabel2, javax.swing.GroupLayout.DEFAULT_SIZE, javax.swing.GroupLayout.DEFAULT_SIZE, Short.MAX_VALUE))
                                .addComponent(jLabel4)
                                .addComponent(jLabel5)
                                .addComponent(jLabel7))
                            .addGap(58, 58, 58)
                            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
                                .addComponent(hargaParkir)
                                .addComponent(NoKendaraan)
                                .addComponent(jamMasuk)
                                .addGroup(layout.createSequentialGroup()
                                    .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
                                        .addGroup(layout.createSequentialGroup()
                                            .addComponent(motor)
                                            .addGap(18, 18, 18)
                                            .addComponent(Mobil))
                                        .addGroup(layout.createSequentialGroup()
                                            .addComponent(lamaParkir, javax.swing.GroupLayout.PREFERRED_SIZE, 52, javax.swing.GroupLayout.PREFERRED_SIZE)
                                            .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.RELATED)
                                            .addComponent(jLabel9)))
                                    .addGap(0, 0, Short.MAX_VALUE))))
                        .addGroup(layout.createSequentialGroup()
                            .addComponent(jLabel8)
                            .addGap(99, 99, 99)
                            .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
                                .addGroup(layout.createSequentialGroup()
                                    .addComponent(jButton1)
                                    .addGap(18, 18, 18)
                                    .addComponent(jButton2))
                                .addComponent(totalBayar)))))
                .addContainerGap(23, Short.MAX_VALUE))
        );
        layout.setVerticalGroup(
            layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
            .addGroup(layout.createSequentialGroup()
                .addContainerGap()
                .addComponent(jLabel1, javax.swing.GroupLayout.PREFERRED_SIZE, 47, javax.swing.GroupLayout.PREFERRED_SIZE)
                .addGap(26, 26, 26)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(jLabel2, javax.swing.GroupLayout.PREFERRED_SIZE, 36, javax.swing.GroupLayout.PREFERRED_SIZE)
                    .addComponent(NoKendaraan, javax.swing.GroupLayout.PREFERRED_SIZE, javax.swing.GroupLayout.DEFAULT_SIZE, javax.swing.GroupLayout.PREFERRED_SIZE))
                .addPreferredGap(javax.swing.LayoutStyle.ComponentPlacement.RELATED)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(jLabel4)
                    .addComponent(motor)
                    .addComponent(Mobil))
                .addGap(18, 18, 18)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(jLabel5)
                    .addComponent(hargaParkir, javax.swing.GroupLayout.PREFERRED_SIZE, javax.swing.GroupLayout.DEFAULT_SIZE, javax.swing.GroupLayout.PREFERRED_SIZE))
                .addGap(18, 18, 18)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(jamMasuk, javax.swing.GroupLayout.PREFERRED_SIZE, javax.swing.GroupLayout.DEFAULT_SIZE, javax.swing.GroupLayout.PREFERRED_SIZE)
                    .addComponent(jLabel3))
                .addGap(18, 18, 18)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(lamaParkir, javax.swing.GroupLayout.PREFERRED_SIZE, javax.swing.GroupLayout.DEFAULT_SIZE, javax.swing.GroupLayout.PREFERRED_SIZE)
                    .addComponent(jLabel7)
                    .addComponent(jLabel9))
                .addGap(51, 51, 51)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(jButton1)
                    .addComponent(jButton2))
                .addGap(18, 18, 18)
                .addGroup(layout.createParallelGroup(javax.swing.GroupLayout.Alignment.BASELINE)
                    .addComponent(totalBayar, javax.swing.GroupLayout.PREFERRED_SIZE, 20, javax.swing.GroupLayout.PREFERRED_SIZE)
                    .addComponent(jLabel8))
                .addContainerGap(33, Short.MAX_VALUE))
        );

        pack();
    }// </editor-fold>

    private void totalBayarActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:
    }

    private void motorActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:
         hargaParkir.setText("2000");
         jamMasuk.setText("07.00 WIB");
    }

    private void NoKendaraanActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:

    }

    private void MobilActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:
        hargaParkir.setText("5000");
        jamMasuk.setText("07.00 WIB");
    }

    private void jButton1ActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:
        int c = Integer.parseInt(hargaParkir.getText());
        int d = Integer.parseInt(lamaParkir.getText());
        int hasilnya = c*d;
        totalBayar.setText(""+hasilnya);
    }

    private void jButton2ActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:
        NoKendaraan.setText("");
        jamMasuk.setText("");
        lamaParkir.setText("");
        hargaParkir.setText("");
        totalBayar.setText("");
        motor.setSelected(false);
        Mobil.setSelected(false);
        motor.setEnabled(true);
        Mobil.setEnabled(true);
    }

    private void jamMasukActionPerformed(java.awt.event.ActionEvent evt) {
        // TODO add your handling code here:

    }

    /**
     * @param args the command line arguments
     */
    public static void main(String args[]) {
        /*
         * Set the Nimbus look and feel
         */
        //<editor-fold defaultstate="collapsed" desc=" Look and feel setting code (optional) ">
        /*
         * If Nimbus (introduced in Java SE 6) is not available, stay with the
         * default look and feel. For details see
         * http://download.oracle.com/javase/tutorial/uiswing/lookandfeel/plaf.html
         */
        try {
            for (javax.swing.UIManager.LookAndFeelInfo info : javax.swing.UIManager.getInstalledLookAndFeels()) {
                if ("Nimbus".equals(info.getName())) {
                    javax.swing.UIManager.setLookAndFeel(info.getClassName());
                    break;
                }
            }
        } catch (ClassNotFoundException ex) {
            java.util.logging.Logger.getLogger(Frame_Aplikasi_Parkir.class.getName()).log(java.util.logging.Level.SEVERE, null, ex);
        } catch (InstantiationException ex) {
            java.util.logging.Logger.getLogger(Frame_Aplikasi_Parkir.class.getName()).log(java.util.logging.Level.SEVERE, null, ex);
        } catch (IllegalAccessException ex) {
            java.util.logging.Logger.getLogger(Frame_Aplikasi_Parkir.class.getName()).log(java.util.logging.Level.SEVERE, null, ex);
        } catch (javax.swing.UnsupportedLookAndFeelException ex) {
            java.util.logging.Logger.getLogger(Frame_Aplikasi_Parkir.class.getName()).log(java.util.logging.Level.SEVERE, null, ex);
        }
        //</editor-fold>

        /*
         * Create and display the form
         */
        java.awt.EventQueue.invokeLater(new Runnable() {

            public void run() {
                new Frame_Aplikasi_Parkir().setVisible(true);
            }
        });
    }
    // Variables declaration - do not modify
    private javax.swing.JRadioButton Mobil;
    private javax.swing.JTextField NoKendaraan;
    private javax.swing.JTextField hargaParkir;
    private javax.swing.JButton jButton1;
    private javax.swing.JButton jButton2;
    private javax.swing.JLabel jLabel1;
    private javax.swing.JLabel jLabel2;
    private javax.swing.JLabel jLabel3;
    private javax.swing.JLabel jLabel4;
    private javax.swing.JLabel jLabel5;
    private javax.swing.JLabel jLabel7;
    private javax.swing.JLabel jLabel8;
    private javax.swing.JLabel jLabel9;
    private javax.swing.JTextField jamMasuk;
    private javax.swing.JTextField lamaParkir;
    private javax.swing.JRadioButton motor;
    private javax.swing.JTextField totalBayar;
    // End of variables declaration
}

HASIL JADI

VIDEO DEMO

[/HIDE]

SELESAI GAN

Jerryho · 21 Nov 2023

Info berfaedah, thanks suhuu

Kudarab · 29 Dec 2023

Suangar pancen smpyan mas

SHARE MEMBUAT PROGRAM PARKIR SEDERHANA [NETBEAN]

More options

RayMantic

Moderator

Jerryho

Semprot Baru

Kudarab

Calon Suhu Semprot

Similar threads
